X3 FastMig 420 Synergic Air Cooled Parts FAQs

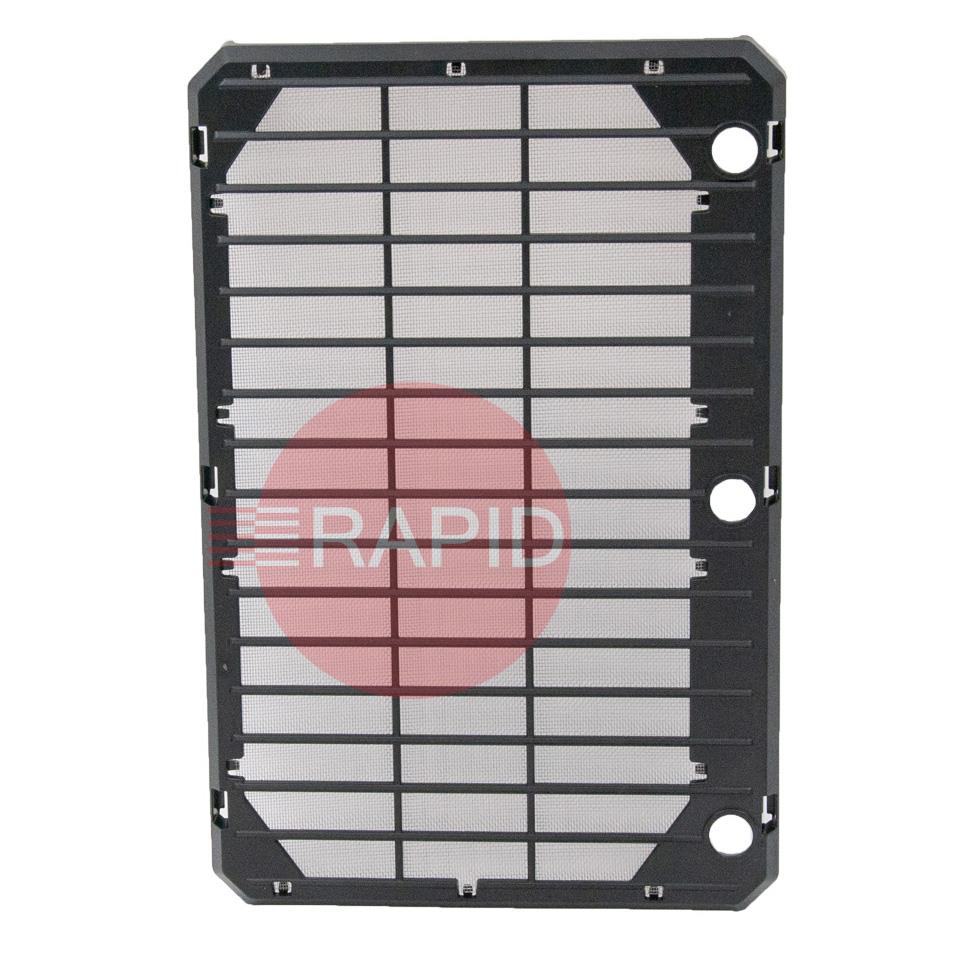

How to choose and look after the torch, feed rolls, cables, filter and control accessories for an air cooled synergic MIG system.
When is an air cooled torch enough, and when should I move to water cooling?
An air cooled torch is the simple option: it has no cooler, pump or coolant hoses, so it is lighter on equipment and easy to set up. Heat is its limit. The longer and hotter the weld, the bigger and heavier an air cooled torch has to be, and it can only run at its rating for part of each cycle.
If most of your welding is moderate current in bursts, air cooling usually suits. If you weld at high current for long, continuous periods, compare the duty cycle of the torch with your real working pattern, and consider whether a water cooled system fits better. Follow the manual for your power source.
How do I read a torch current and duty cycle rating?
A torch rating is a current together with a duty cycle: the share of a period that the torch can carry that current without overheating. Duty cycle is normally worked out over a 10 minute block, so read the two figures together rather than looking at the current alone.
The rating can also depend on the shielding gas and the welding mode, so check which gas the rating applies to, and choose a torch with some margin above the current you actually use. The torch or its manual should show the rating.
How do I know when a contact tip needs replacing?
Replace a contact tip when it shows wear, rather than waiting for a set number of hours. The most reliable sign is a bore that is no longer round: wire movement at high temperature stretches the hole into an oval, which upsets feeding and current transfer. Erratic feeding, an unstable arc and more frequent burnback are other signs.
Fit a tip that matches the wire diameter, because undersized wire in an oversized tip causes poor current transfer and early wear. Seat the tip firmly, as a loose tip overheats, and keep to the recess the torch manual gives. Do not file the bore to extend its life.
When should I replace a torch liner, and what mistakes shorten its life?
A liner guides the wire from the feeder to the tip. Replace it if it is kinked, clogged with debris, worn, the wrong size for the wire, or if the wire will not pull through by hand with the roll pressure released. Steel liners suit steel wire, while plastic type liners are normally used for soft wire such as aluminium.
A liner cut too short is a common cause of early failure, so trim it as the torch instructions say, remove burrs at both ends and make sure it seats properly at the power pin and tip. Tight bends in the torch cable and too much feed roll pressure also speed up wear. Never run a torch without a liner.
