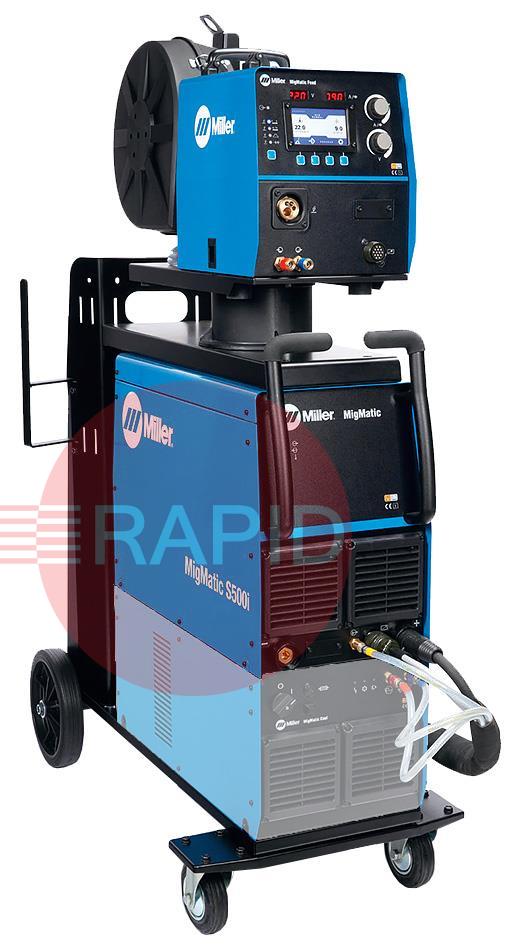

** This Miller MigMatic S500i Air Cooled Package consists of the power source, 4.5m EuroGun A-300 mig torch, the MigMatic Wire Feeder 2.0, a 10m interconnection cable, the MigMatic Cart and a 5m return cable kit. **
Miller’s MigMatic S500i fully synergic MIG/MAG systems feature the one-of-a-kind Miller drive system designed for the highest level of wire feed performance and reliability. All modules are bespoke to the system and built to be trouble-free for high-productivity welding. It has never been as easy to achieve excellent welding performances. Always enjoy full control.
Features
Specifications
Input power: 400 V, 3 phase, 50/60 Hz
Welding output: 500 A, 39 V @ 50% duty cycle
Max. output amperage: 550 A
Output range: 15 A – 500 A
Net weight (Power source only): 53Kg
Miller Return cable kit 400A 70mm² 5m
Miller MigMatic Air Cooled Interconnection Cable - 10m
Miller EuroGun A-300 Air Cooled MIG Torch - 4.5m
Miller MigMatic Cart
Miller MigMatic Wire Feeder. Fitted with Euro connector, 1.0 - 1.2 mm “V” groove drive rolls and spool cover
Miller MigMatic S500i MIG/MAG Welder Power Source - 400v, 3ph (Wire Feeder, Cooling Unit, Cart and Cables Not Included)
Miller MigMatic 2.0 Wire Feeder. Fitted w/ Euro Connector, 1.0 - 1.2 mm “V” Groove Drive Rolls & Spool Cover
Miller User Manual
Miller True Blue 3 Year Parts and Labour Warranty
