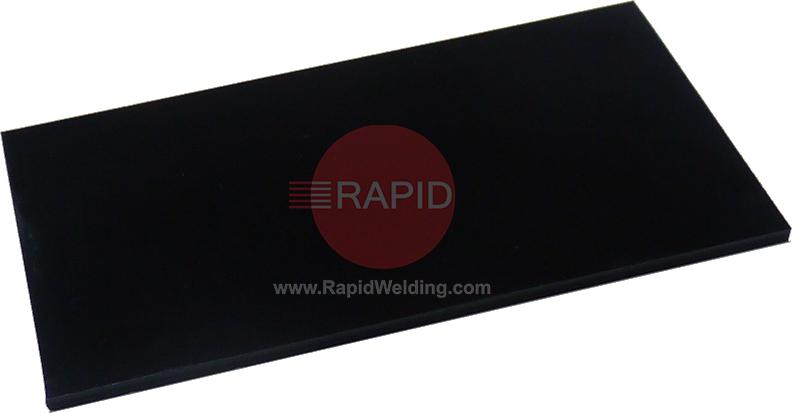

Lens dimensions: 60mm x 110mm.
Replacement lenses, fittings and comfort parts for a passive welding helmet, and how to work out the right one.
The HSE says welders need eye protection with filters to guard against arc eye, a painful injury to the front of the eye caused by welding radiation, which usually shows up a few hours after exposure. It says the filters should meet relevant British and European standards.So never fit a filter or plate that is not made for your helmet and process. Makers say not to use any filter without its shade number and approval marking, and never to use a protection glass in place of the inner plastic safety plate. Do not use a cracked or loose part. Check the manual or ask your supplier if you are unsure which part is right.
Check them before every use. Maker instructions say to replace protection plates straight away if they are scratched, damaged or built up with spatter so that vision is reduced, and to replace any cracked, pitted or scratched part.Plastic plates scratch easily, so handle them carefully, and only fit the type of plate your helmet manual specifies. Sizes and fittings differ between helmets, so match the part to your helmet from the manual or the old part.
Blow loose dirt and dust off first, then wipe the helmet with a damp cloth wetted with mild soapy water, and dry it with a clean cloth. Maker instructions say not to use solvents or strong cleaning solutions. Plastic plates scratch easily, so handle them carefully.Inspect the shell, headband, filter and plates for cracks, pitting or scratches each time you use the helmet, and replace anything damaged, because a damaged part reduces protection. Do not put the helmet down on a hot surface such as a hot weld, and keep it somewhere clean and dry. Follow the manual for your model.
Adjust the height and girth of the headband for comfort. Set the band fairly low so the helmet stays firmly in place, with the sweatband a little above your eyebrows and ears, and tighten it with the adjusting wheel to suit your head.Then set the helmet angle so that its lower edge is near your chest while welding, where protection is best, and adjust the pivot tightness so a raised helmet stays up but drops when you nod. If it strikes your chest as it falls, it is too loose or set too close to your face. Replace the headband if it is cracked or no longer holds its setting.
