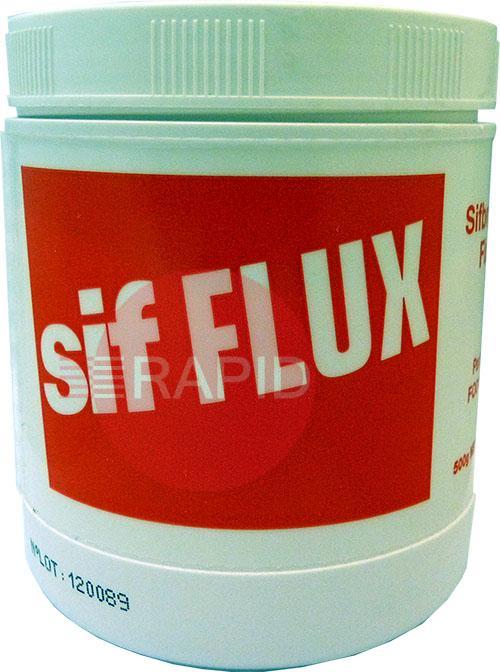

Powder flux for general brazing work.
Straight answers to the questions people ask most when choosing and using brazing and soldering flux.
Choose the flux to match the filler metal, the metals being joined and the temperature you will work at. Fluxes are made for particular jobs: silver brazing, bronze brazing, aluminium, stainless steel and soft soldering each have their own types, and they are not interchangeable.The filler maker normally says which flux to use with a given rod. Check the pack for the metals it is intended for and for its working temperature range, and make sure it covers the temperature at which your filler melts and flows.
Most brazing needs flux, but some filler metals are self-fluxing in certain uses. For example, copper-phosphorus rods can be used without flux when joining copper to copper, because the phosphorus does the job. They still need flux on brass and bronze, and they are not suitable for joining steel.Some aluminium fillers carry flux in the core. Always check the instructions for the rod you are using, and use flux where there is any doubt.
Clean the joint first, then coat both surfaces with flux. Paste fluxes are brushed on, and powder fluxes are mixed with clean water into a paste first. You can also dip a heated rod into the flux so some sticks to it. Coat the area generously, covering more than the final joint, because flux also protects the metal around the joint as it heats.Apply it before heating and keep the joint covered while you heat. If the flux burns away or turns black, there was too little or the joint got too hot.
Watch the flux. As the joint heats, most brazing fluxes bubble, dry out and turn into a clear, watery liquid when they reach working temperature. That is the signal that the metal is ready for the filler.Heat the parent metal, not the rod, and let the heat from the joint melt the filler as you touch it on. If the filler does not flow, the joint is probably not hot enough, or the surface is not clean.
