K14109-1 Lincoln PF-46 Four Roll Wire Feeder
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : K14109-1

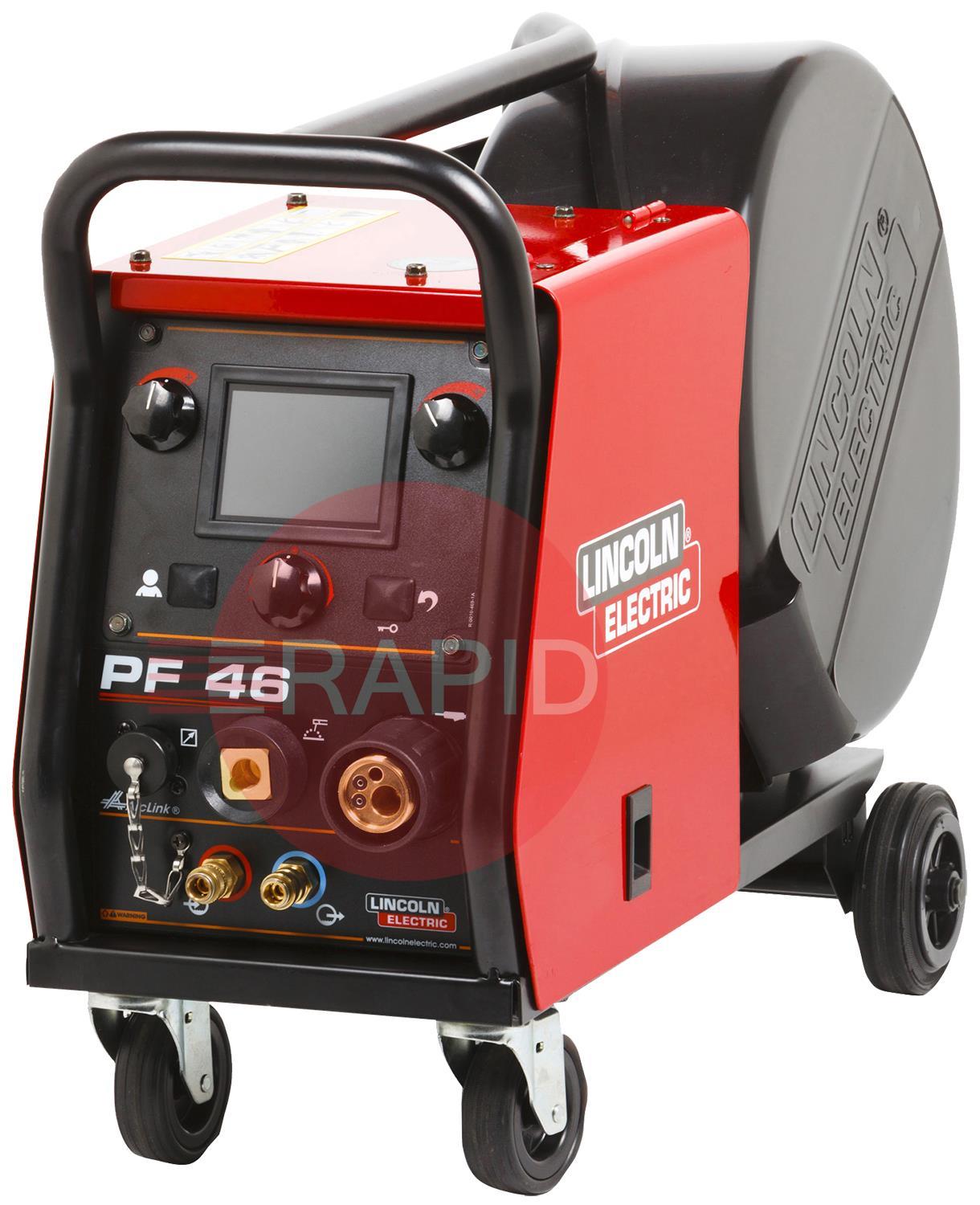

    Lincoln PF-46 Four Roll Wire Feeder
    K14109-1

    £1924.00  EX VAT
    SSP Suggested Selling Price = £2404.62  YOU SAVE £480.62
     Buy in 3 easy interest free payments of £641.33† with

    The Power Feed wire feeder range is designed to combine easy handling and control by the welder with perfect wire feeding. Depending on your application, the PF feeders are supplied as standard with a standard undercarriage but are available to be hung from a boom or placed on a special heavy-duty undercarriage to be used in tough industrial conditions.

    The PF46 supports all modes installed on Multi-process or advanced digital (ArcLink®) Lincoln power sources. The top-class feeder PF46 includes the U6 User interface which utilises a TFT colour display with intuitive icon language and a variety of special functions, including USB connection, Dual Procedure, Memory, and Limits. This unit also features a Light Switch inside the feeders which supports wire installation in dark, industrial conditions. All Power Feed 4X series can be optionally equipped with a gas flow meter, heavy-duty undercarriage or lifting eye.

    Features

    • Small rugged and easy-to-handle feeders; with bright digital meters
    • Utilises ArcLink® – the leading digital communication protocol for welding, making it the best choice for seamless, time-critical integration with the power source
    • Four-roll drive system with a powerful motor
    • Hot/Soft start Crater Run and all standard features
    • Easy-to-understand user interface panels make it easy to set weld parameters
    • Remote control on the gun
    • Features push-pull capability for great performance on aluminium. Equipped with wheels as standard

    Related Items

    Lincoln Speedtec 405SP Options FAQs

    Straight answers to the questions people ask when choosing options such as coolers, feeders, cables and trolleys for a high-current MIG power source.

    Do I need a water cooler and a water-cooled torch?icon-minus-redicon-plus-red

    A water-cooled torch carries high current for long periods with less heat building up in the handle, so it suits heavy, continuous welding. Air-cooled torches are often rated lower for continuous use, and a torch's rating depends on the gas and the duty cycle, so always compare the torch's rating for your own gas and duty cycle.

    If your work is mostly short runs below the torch's air-cooled rating, a water cooler may not be needed. If you do run a water-cooled torch, it must have a working cooler connected. Check the torch and power source data before you decide.

    How does a water cooler protect the torch, and what should I check?icon-minus-redicon-plus-red

    Coolers normally include a flow switch or sensor. If the flow drops, for example from a kinked hose, a blocked line or low level, it signals the power source to stop welding so the torch does not overheat.

    Before striking an arc, run the coolant and check hoses and fittings for leaks while it is flowing. Look for cracks, bulging or soft spots. Leaking coolant near the torch is also an electric shock risk, so stop and fix leaks straight away. Keep the cooler's fins and fan clean and check the level every day.

    What does an interconnecting cable carry, and how long can it be?icon-minus-redicon-plus-red

    A cable between the power source and a separate wire feeder usually carries the welding current, a control signal and the shielding gas, and on water-cooled versions the coolant hoses as well. A loose welding connection can overheat, so tighten each connector fully as the handbook says.

    Maximum length depends on the maker, the process and the cable size, because long runs cause voltage loss. Do not join cables together unless the handbook allows it. Use the length the maker specifies for your machine.

    Why are there air-cooled and water-cooled versions of the same cable?icon-minus-redicon-plus-red

    The water-cooled version includes coolant hoses so that the cooler can supply the torch through the feeder, while the air-cooled one does not. The two are not normally interchangeable, because the connections and the cable construction are different.

    Choose the version that matches how your torch is cooled. Check that it also suits your power source and feeder, because connectors and control wiring differ between machines. The handbook for your power source lists the matching cable types.
