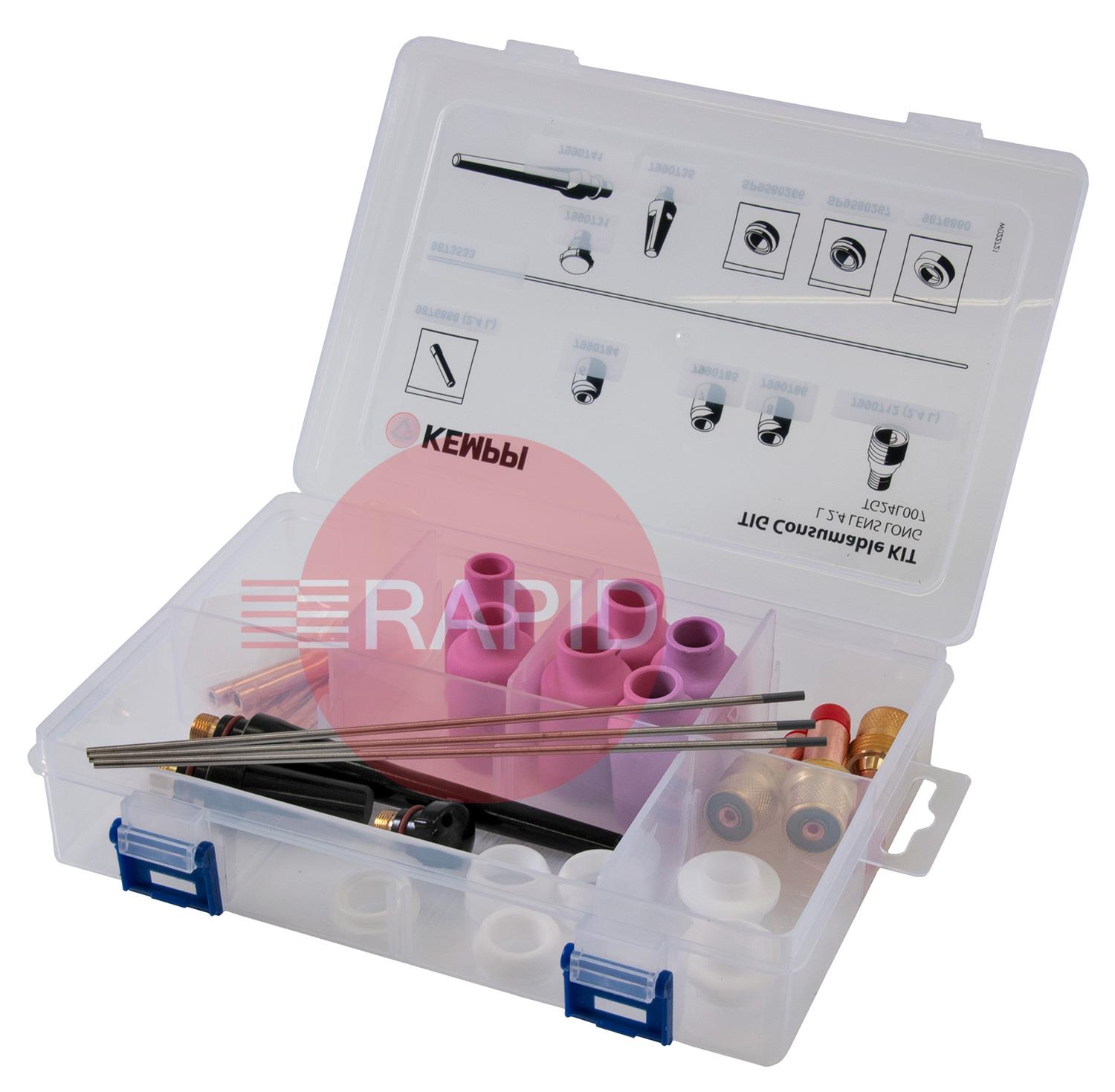

Consumable kit includes;
Straight answers to the questions people ask when choosing a front-end consumable kit for a large-body TIG torch.
A gas lens replaces the standard collet body. Instead of side holes that make the shielding gas swirl, it uses fine mesh screens to straighten the flow into a smoother, steadier column. That gives better protection to the weld pool and the hot tungsten.It also lets you extend the tungsten further from the cup, which helps you see the joint and reach awkward corners. Lens kits are popular for stainless steel and other work where gas cover matters most. A standard collet body is fine for non-critical work and short tungsten extension.
A larger cup gives a wider, longer stretch of smooth gas flow, so it protects the weld better. A smaller cup helps you get into tight spots, but it pushes the gas out faster and can make it turbulent. As a general rule, use the largest and longest cup that the joint allows.The cup must match the collet body or gas lens in your torch, because the threads and seals differ between designs. Check the torch manual for the cup sizes it accepts, and keep a small and a large cup to hand.
A common order is to fit the collet body or gas lens into the torch head first, then the cup, then slide in the tungsten and collet from the front, and finally fit the back cap, which clamps the tungsten. Guides differ slightly on when the back cap goes in, so follow the order in your torch manual.Tighten parts by hand without forcing them, because over-tightening can damage threads and ceramic cups, and a loosely seated collet body can let air into the gas stream. Look over the insulators and seals whenever you open the torch, and replace any that are cracked or worn.
The main concern is with thoriated tungsten, and it is the grinding dust, not the arc. Grinding exposes the most thoria, so use a dedicated grinder with local dust extraction, wear suitable respiratory protection, keep the area clean and wash your hands before breaks.Store thoriated electrodes in a closed, labelled box. Ceriated and lanthanated electrodes carry a lower hazard, though sensible dust control still applies to all tungsten grinding. Base your controls on your own risk assessment and the maker's instructions.
