Fronius MMA Cable Sets FAQs
Cable sets for manual metal arc (stick) welding: what they contain and how to choose, fit and look after the leads, plugs, holder and clamp.
What is normally in a stick welding cable set?

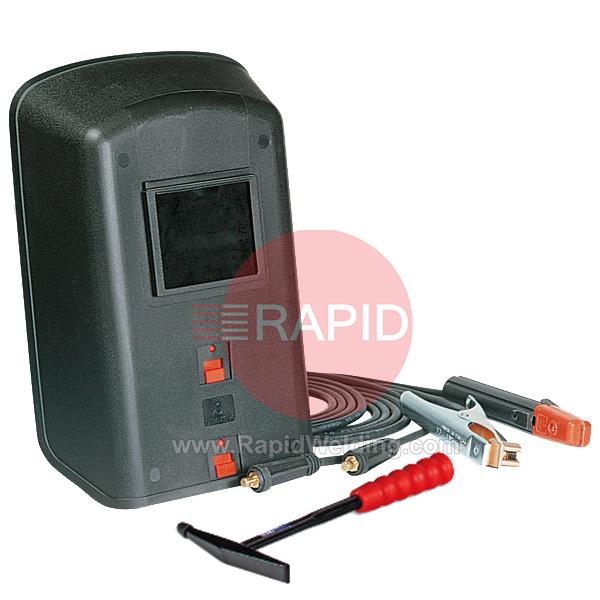

A set for manual metal arc (stick) welding normally has two leads: an electrode lead that ends in an insulated electrode holder, and a return (work) lead that ends in a work clamp. Each lead has a plug at the machine end. Some sets also include basic accessories such as a chipping hammer, a wire brush and a hand shield.
Read the contents list carefully, as sets differ in cable size, lead lengths and plug size. Check these against your welding machine's output rating and its socket type before choosing.
How do I choose the right cable cross-section?
Cable size is given as the cross-section of the copper conductor in square millimetres. A larger cross-section carries more current. Cable that is too small for the current will overheat, which is a fire, cable failure and shock risk, while cable that is bigger than needed gives no better welding.
Match the size to the maximum output of your welding machine and the duty cycle you will actually use, using the cable maker's rating chart. Length, insulation temperature rating and ambient temperature also affect how much current a cable can carry safely.
How do I know which plug size I need?
Plugs are sized to suit the cable cross-section, and each plug size covers a range of cable sizes, so check the range given by the plug maker. The plug must also match the socket on the welding machine, so check the machine's manual for the socket type.
Choose a plug that suits both the cable size and the current it will carry. A plug that is a poor fit for the cable, or one that is not fully inserted and locked, can make a poor connection that gets hot. Fit and tighten plugs so they make full contact. Labelling varies between makers, so if you are unsure, check the plug maker's details.
What should I look for in an electrode holder?
Choose a holder rated for at least the maximum current of your machine, and make sure the jaw opening takes the largest electrode diameter you will use. Fully insulated holders are recommended so that no bare metal can be touched by accident.
Jaw styles differ. Some hold the electrode very firmly but are slower to change, while spring or lever types are quicker to use. Check the grip is comfortable and the cable connection is secure. Replace a holder that has damaged insulation, worn jaws or a loose cable entry.
