  • ELEMENT100  Rotabroach Element 100 Magnetic Drill
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : ELEMENT100

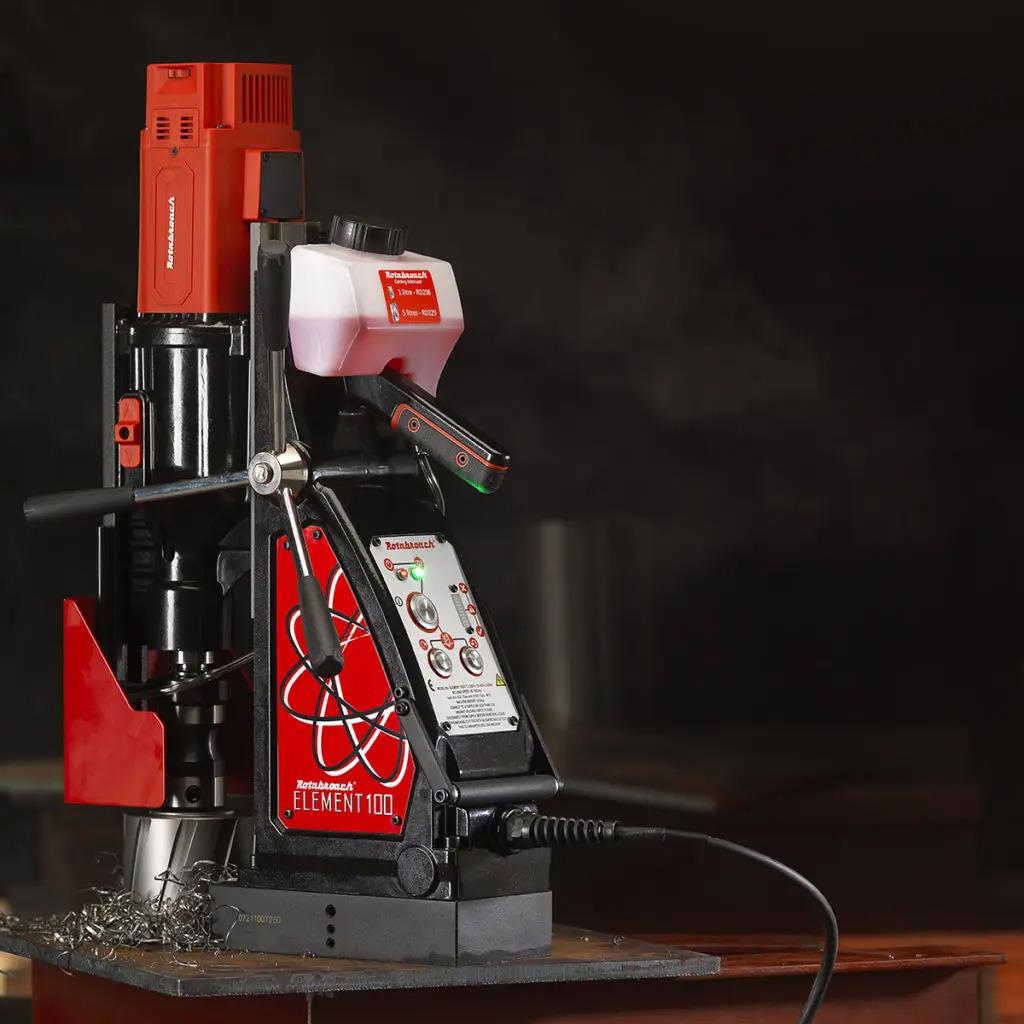

Rotabroach Element 100 Magnetic Drill ELEMENT100

Prices From £1145.00 ex VAT
Select Option

The Element 100 is Rotabroach's largest machine with large diameter drilling and cutting depths. It is suitable for drilling up to 100mm diameter by 100mm depth. The Element 100 offers forward and reverse functionality for tapping. The range also features a unique dual motor protction system prolonging the machines life and preventing unwanted wear.

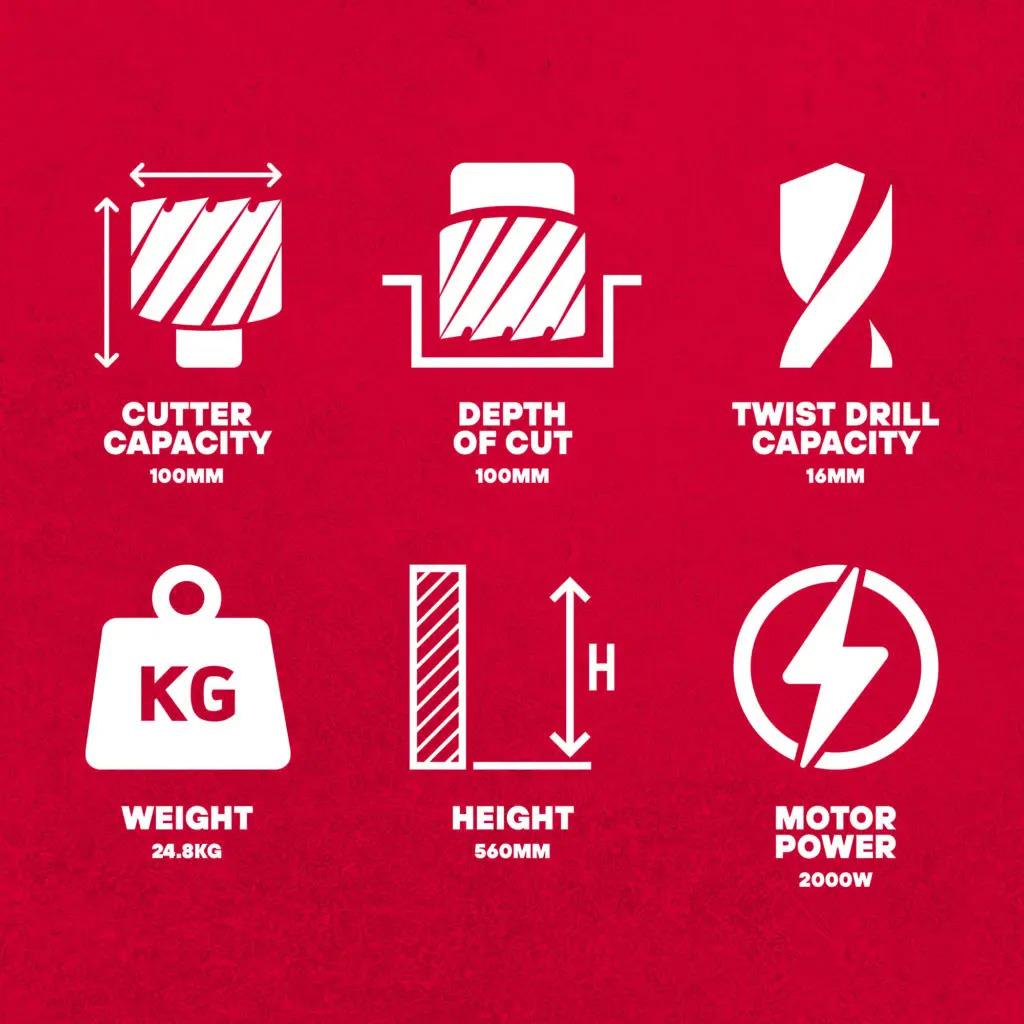

Specification
Motor specification: 110v 2000W
No load RPM: Gear 1: 45 - 129 RPM / Gear 2: 70 - 208 RPM / Gear 3: 150 - 434 RPM / Gear 4:240 - 700 RPM
Max Hole Cutting Capacity: 100 x 100mm Deep - 31.75mm with 3MT drill
Dimensions: Height 560mm Width 230mm (with capstan) Length 460mm with Guard
Weight: 24.8kg
Magnetic Adhesion: 20,000N
Magnet Size: 228mm x 114mm

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Rotabroach Element 100 Manual
