  • CK-D2GS418  2 Series Complete Front End Kit. Alumina Cup 3.2mm.
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : CK-D2GS418  Mfr Ref : D2GS418

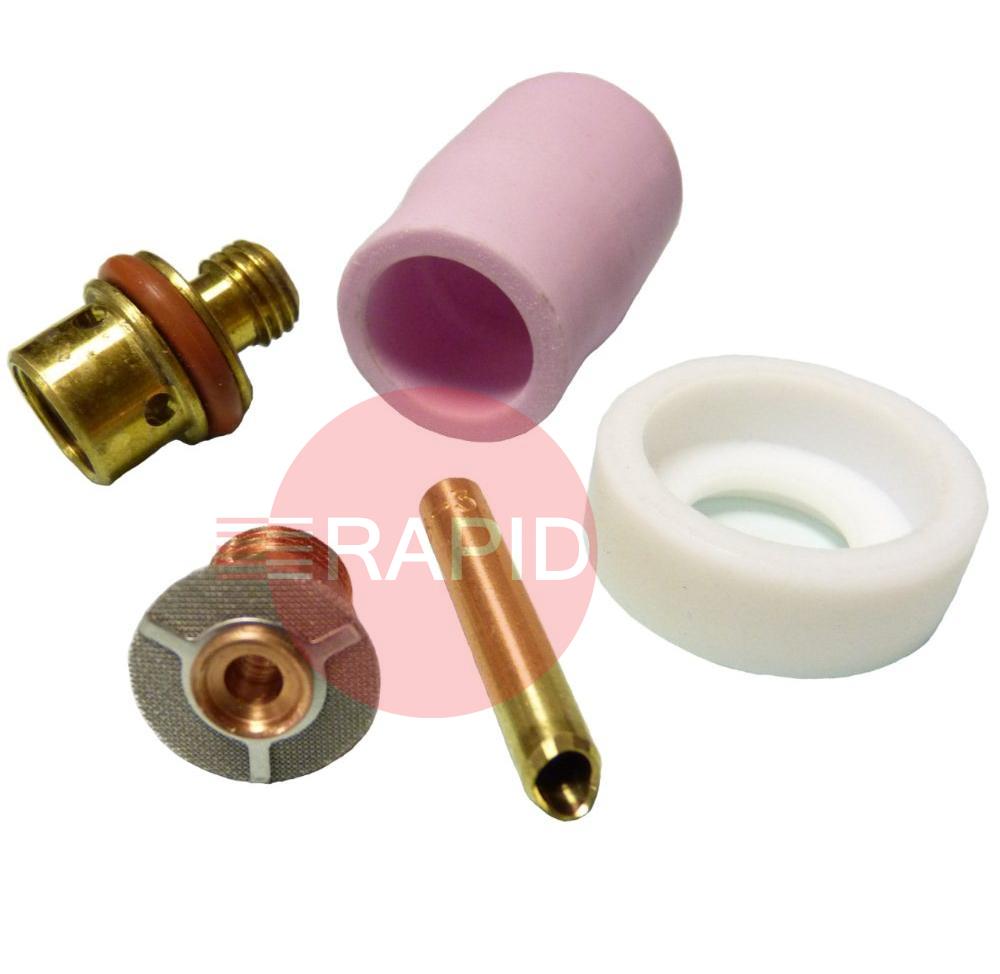

CK 2 Series Complete Front End Gas Saver Kit, Alumina Cup D2GS418 CK-D2GS418

Click here to see what's included
£16.70  EX VAT
SSP Suggested Selling Price = £33.40  YOU SAVE £16.70
Select Option

CK Worldwide's Gas Saver™ front-end kit allows users to save up to 40% of shield gas consumption while providing better shield gas coverage patterns. With better shielding gas coverage patterns the welder can extend the tungsten up to 6 x the diameter of the electrode beyond the edge of the gas cup (This is achieved in draft-free areas using argon gas).

Alumina push-on or Pyrex high-temperature glass cups are available. Alumina cups are durable, impact-resistant and handle high-temperature welding applications. Pyrex glass cups are used in applications where visibility is an issue such as inside corners, inside pipe, around tubing, etc.

The Gas Saver kits will retrofit 2 series (CK9, CK20) or competitive brand equivalents using a replaceable white Teflon heat shield on a silicon rubber torch body.


CK Gas Saver Kits

Part # Description Quantity
2A8GS CK #8 Alumina Cup - 2 Series Gas Saver, 12.7mm bore x 32.6mm length 1
2C418GS CK Wedge Collet - 2 Series Gas Saver, 3.2mm 1
2HSGS CK Standard Heatshield - 2 Series Gas Saver 1
2CBGS CK Standard Collet Body - 2 Series Gas Saver, One Size Fits All 1
TAS418GS CK Tungsten Adapter w/ Screens - 2/3 Series Gas Saver, 3.2mm 1

Product Details

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
