Rapid Ref : 803084-110

HMT RTQ40 Low-Profile Magnet Drill 803084-110

£849.50  EX VAT
SSP Suggested Selling Price = £995.00  YOU SAVE £145.50
 Buy in 3 easy interest free payments of £283.17 with
Select Option

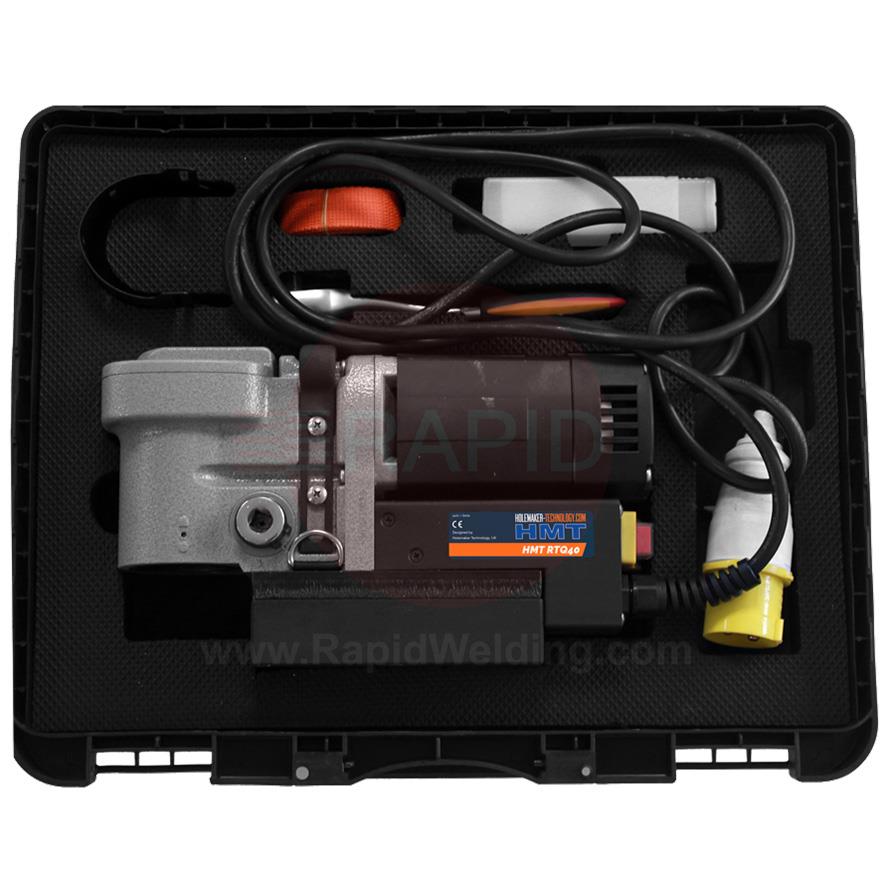

The new HMT RTQ40 is a low-profile Magnet drill for tight access applications and is designed to fit into any space greater than 180mm. Suitable for use with any standard broaching cutters while optimised to work with the high-performance CarbideMax 40 cutters. Each machine comes in a plastic case with hex keys, a safety strap, a ratchet, and a removable coolant system.

Features

  • Ratchet drive can be mounted on either side of the machine
  • Powerful motor and magnet gives excellent stability
  • Quick-change 19.05mm 3/4" Arbor for all standard broaching cutters

Product Details

Specification

CUTTER SIZE RANGE  12-40mm
MAX CUTTER CAPACITY   40mm
TWIST DRILL CAPACITY 13mm
LENGTH 310mm
WIDTH 135mm
HEIGHT 180mm
STROKE 40mm
WEIGHT 10.8Kg
MAGNET (LxWxH) 160x80x37mm
MAGNETIC FORCE 1200Kg
MOTOR POWER 1050W
TOTAL POWER 1100W
SPEED RPM (No Load) 700RPM
SPINDLE 19.05mm 3/4" WELDON
TAKES CHUCK No
COOLANT SYSTEM GRAVITY OIL FED



Brochures & Manuals

BROCHURES & MANUALS
   HMT RTQ 40 Operating Manual
