Torch consumables for a hand-held plasma cutter: what each part does, how to spot wear and how to get the most from a set.
The electrode has an insert at its tip that wears into a small pit as you cut. Replace it when the pit becomes too deep, because running it further can damage the nozzle and torch. The pit depth limit depends on the maker, so use the figure in your manual.Cut quality is the other clue: if edges become rough, dross increases or the arc is hard to start, inspect the electrode and nozzle. Never refit a worn electrode just to use it up.
Yes, that is the usual advice. A new electrode fitted behind a worn nozzle, or the reverse, tends to wear out quickly and gives poor cuts. Makers' manuals say to replace the nozzle at the same time as the electrode when the electrode is changed for wear, and some recommend changing the two as a set.Which of the two wears first depends on how you cut. Check the other parts at the same time, such as the swirl ring and retaining cap, for cracks, chips or blocked gas holes, and replace any that are damaged.

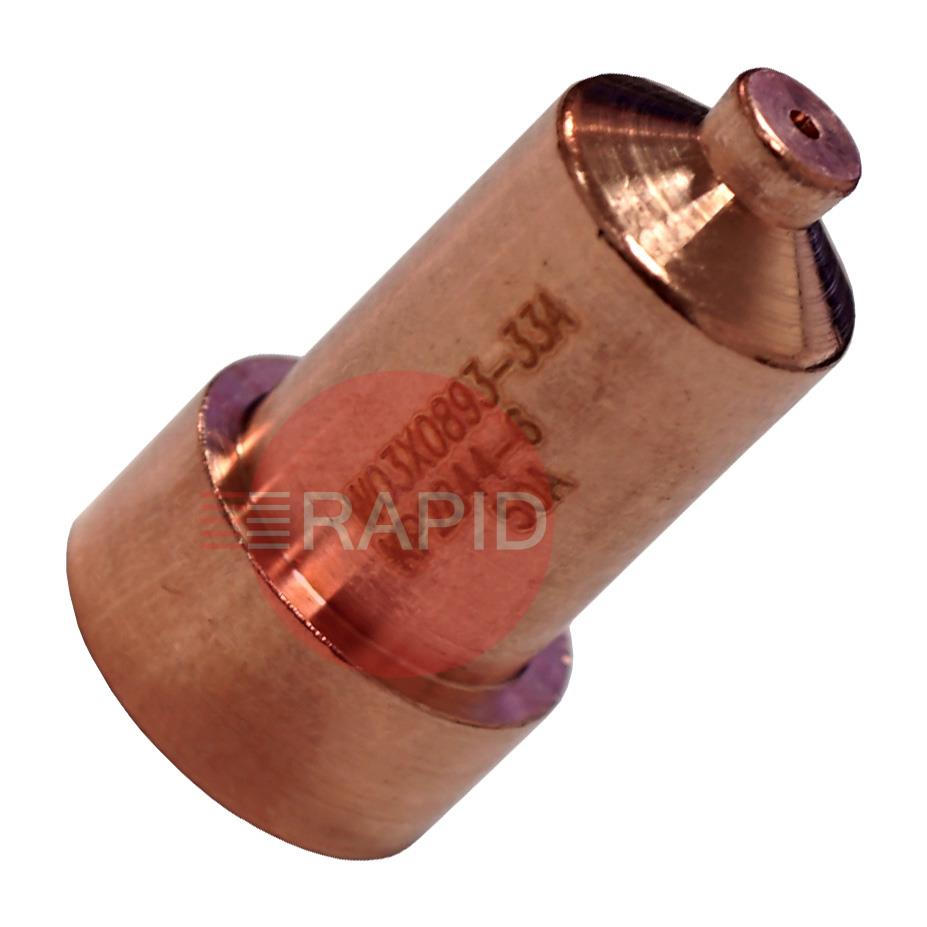

Look at the hole in the tip. It should be a clean, round opening with sharp edges. Replace the nozzle if the hole is enlarged, nicked, no longer round, eroded, or if gas holes are blocked or the sealing rings are damaged. Symptoms during cutting include a wider kerf, more dross and an arc that wanders or cuts at an angle.If cut quality is poor and you cannot find the cause, check the nozzle orifice along with the electrode, swirl ring and air supply. Replacing the nozzle with the electrode is normally the right move.
Some torches are designed so the front of the torch can rest on the plate and be dragged along the cut. Others need a fixed gap between nozzle and work, which a spacer or standoff guide helps you keep. A drag shield cap sits over the nozzle, so a nozzle must still be fitted beneath it.Which style you use depends on the torch design and the current setting, so follow your manual. Do not mix parts from different styles. If you are unsure which one suits your torch, check the data plate and manual, or ask our team.
