  • K12058-1WPCKFS  Lincoln Aspect 300 AC/DC TIG Welder, Water-Cooled Ready to Weld Package with 4m CK 230 Torch, 400v 3ph
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : K12058-1WPCKFS

Lincoln Aspect 300 AC/DC TIG Welder, Water-Cooled Ready to Weld Package with 4m CK 230 Torch, 400v 3ph K12058-1WPCKFS

Click here to see what's included
£6697.00  EX VAT
 Buy in 3 easy interest free payments of £2232.33 with

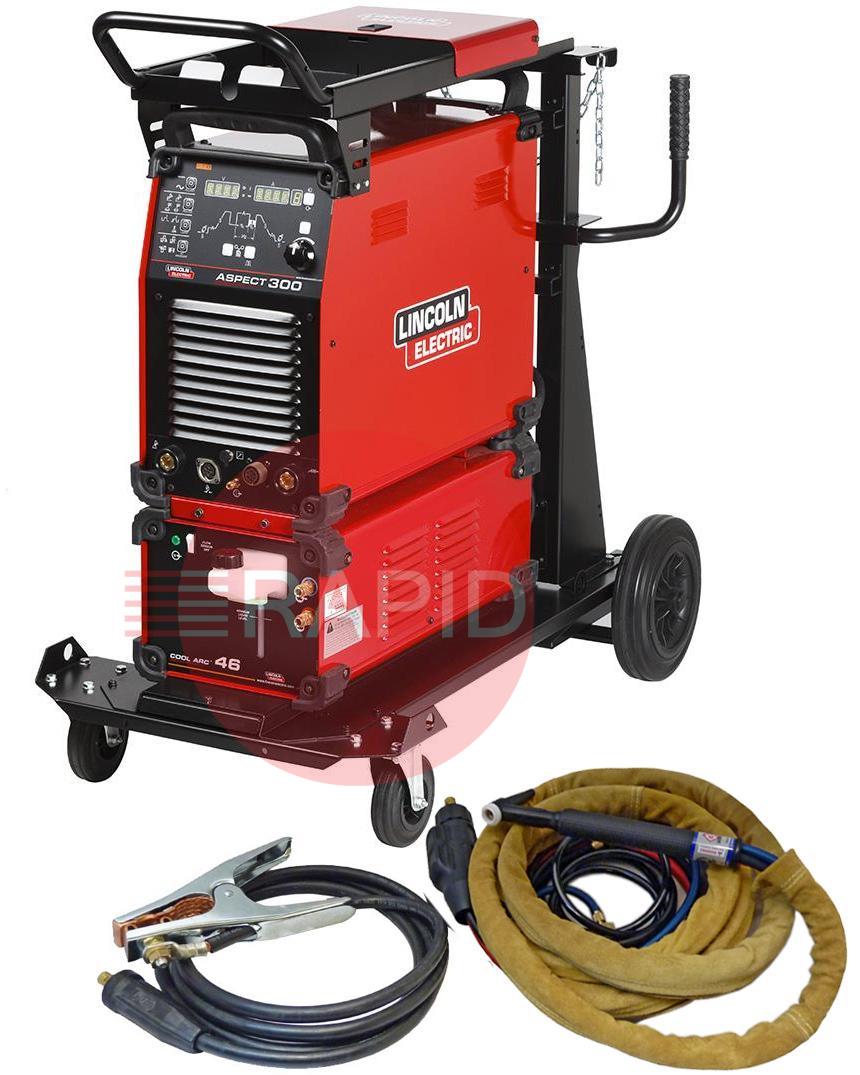

Package includes: Power Source, CK 230 4m TIG Torch with Switch & Sheath, Coolarc 46 Water Cooler, Lincoln TPX Undercarriage, 5m Ground Cable, Gas Hose, Gas Regulator, Hose Nut & Nipple set.

The TIG AC/DC new aspect!

The ASPECT 300 is an industrial AC/DC TIG welding machine designed and manufactured with the latest digital inverter technology. This machine has been designed and built to perform in the most hazardous environments at high outputs: 300A at 35% duty cycle both in TIG AC and TIG DC application. The controller provides all the features you would expect from industrial AC/DC TIG inverter welding machines combined with a user-friendly front panel layout, setting advanced TIG parameters has never been so simple.

The top-class features like the 2A minimum current, the multiple AC mode selection (including four different wave shapes), and the optimised TIG start with adjustable electrode type and HF polarity, makes the unit the right choice to suit any application.

Features

  • Advanced inverter technology for superior TIG performance
  • Superb welding characteristics with TIG DC, TIG AC and Stick welding processes
  • Adjustable cleaning and penetration for perfect aluminium welding
  • Variable AC frequency (40-400Hz) for control of travel speed and penetration
  • Full function user-friendly control panel layout with graph and a numeric display make it easy to set all welding parameters
  • Rugged construction: electrical safety (IP23), potted PC boards and optimum airflow reduce contamination to extend the equipment's life in the harshest environmental conditions
  • PFC (Power Factor Correction) advantages: 30% more output current with the same input current, suitable for 230-400V (+15%-10%) three phase, low current consumption, energy saving, low current harmonics and reduction of the total CO2 produced by the welding process

Product Details

Specification
Voltage: 230/400V 3Ph
Current Range: 2 - 300A
Rated Output: 300A/22V/35%, 200A/18V/100%
Weight: 43Kg
Dimensions: H 465mm x W 301mm x D 632mm
