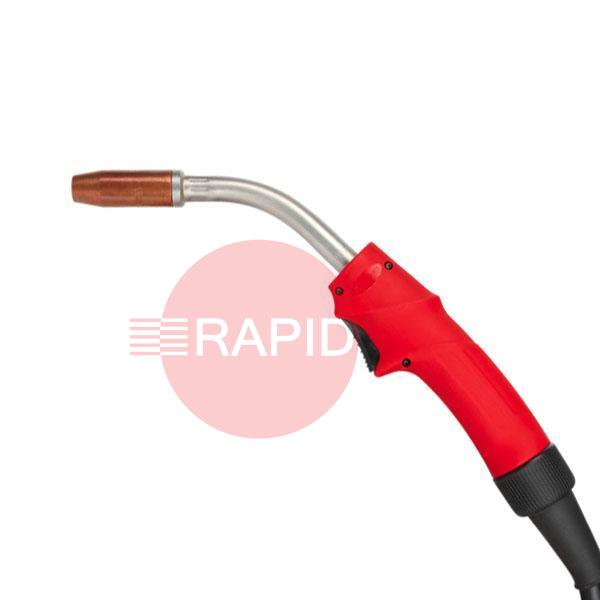

Fronius MTG2500S FAQs
Practical answers on getting reliable results from a mid-duty air-cooled MIG torch with a central connector.
How do spatter and a blocked nozzle affect my welds?
Spatter builds up inside the nozzle and on the diffuser and tip. Once it starts to stick it keeps growing, restricting the shielding gas or making it turbulent, which lets air reach the weld and causes porosity.
Clean the nozzle regularly, check that the diffuser ports are clear, and replace a damaged nozzle. A flawed weld often appears before you notice the build-up, so make nozzle checks part of your routine.
Does mild steel welding fume need more than good general ventilation?
Yes, in most cases. Welding fume, including mild steel fume, can harm health. The HSE says good general ventilation can be enough for some work, but in most welding workshops natural ventilation from open doors and windows is not sufficient, so mechanical general ventilation is needed as a minimum. Capturing the fume at source with local exhaust ventilation is the most effective way to reduce it, and on-torch extraction can be very effective for MIG welding.
If extraction cannot give adequate control, or is not reasonably practicable, suitable respiratory protective equipment is needed. Your controls should be based on your own risk assessment.
What should I check on a torch before welding?
Look over the handle, trigger, cable cover and connector for cracks, cuts or exposed conductors, and check the connections are tight, clean and dry. Do not use a torch with damaged insulation or cable; take it out of use until it has been repaired or replaced.
Also check the nozzle, tip and diffuser for spatter and wear. Repairs should be done by a competent person following the maker's instructions.
How long should the wire stick out from the tip?
Wire stick-out is the distance from the contact tip to the work. Too long gives poor bead shape, shallow penetration and an unstable arc, so the shortest stick-out that suits the job is usually best. Short-circuit welding generally uses a shorter stick-out than spray transfer.
The nozzle design matters too: a recessed tip allows a longer stick-out, while a flush tip needs a shorter one. Too short can bring the tip and nozzle close to the weld pool, causing overheating and burn-back. Follow the manual for your nozzle type and keep the distance consistent.
