Rapid Ref : CK-WACCV-10-X-L5

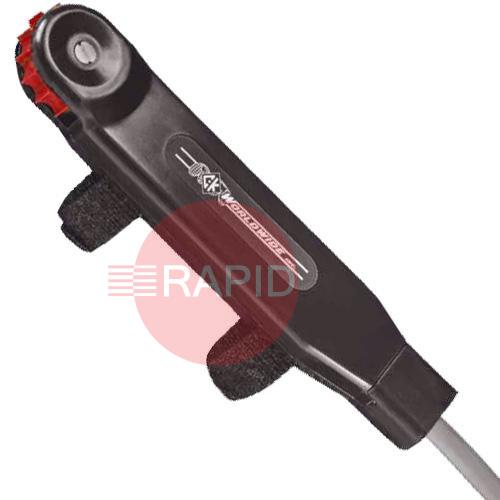

CK Wheel Amperage Control 10K Ohm, for Lincoln Electric 5 Pin Machines
CK-WACCV-10-X-L5

Name: CK Wheel Amperage Control 10K Ohm, for Lincoln Electric 5 Pin Machines
SKU: CK-WACCV-10-X-L5

Select Option

Prices From £236.67 ex VAT

Remote amperage controls provide welding power source contactor on-off, activate gas and/or water solenoids, and provide full range current output control. Handle style includes Velcro® straps where one size fits all handle diameters and retrofits easily on all makes of TIG torches.

Returns to off automatically
Insures electrode not “hot” when not in use
Great for tack welding, short or long welds, and “bumping” technique
Can be positioned closer to torch head for optimum torch control

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

Lincoln Electric Machine Remotes FAQs

Foot pedals and hand-held amperage controls that plug into a compatible TIG machine, and how to get the best from them.

My pedal never seems to reach full current. Is it faulty?

Not necessarily. With a pedal, the machine sets the ceiling and the pedal varies the output below it, so pressing fully down gives the maximum you have set and no more.

Some pedals also have a knob that caps the output further, so at half setting full pedal travel only gives about half of the machine's maximum. Check the current set on the machine panel and any limit knob on the pedal before suspecting a fault. If both are right and the current still does not follow your foot, check the lead, plug and the machine's manual.

Do I have to switch the machine to remote before the pedal works?

Usually yes. Most TIG machines need to be set to take their current (and often their output on and off) from a remote control. Depending on the machine this is a panel switch, a menu setting or a button sequence.

If the pedal is plugged in but the machine ignores it, or the arc will not start, check that the remote or contactor setting is selected before blaming the pedal. If you are not using a remote, the setting often needs to go back to the normal position. Your machine's manual will show the exact steps.

Is it safe to change the tungsten or cup while the pedal is plugged in?

Switch the machine off at the power source before changing the tungsten electrode or the gas cup. Pedals and torch switches can start the arc, and on a machine with high-frequency start that means a high-voltage pulse at the torch, so an accidental press is a real hazard.

Keep your foot clear of the pedal while you work at the torch. Damaged torches or leads, such as ones repaired with insulating tape, are a risk, so replace them. Follow the manufacturer's instructions and your own risk assessment.

The pedal starts the arc but will not change the current. What does that mean?

A foot pedal normally contains two separate parts: a switch that starts and stops the output, and a potentiometer (variable resistor) that sets the current. Each uses its own pins in the plug, so one can work while the other fails.

If the arc starts but the current stays fixed, check that the plug is fully seated and the machine is set to take its current from the remote. If those are right, the current-control part of the pedal, its lead or its plug may be worn or damaged. Check the machine's manual for the pin connections and have a competent person test and repair it.

See all 6 questions for this category
